QS-350 handhled cutting machine

Short Description:

QS-350 represents the pinnacle of heavy-duty cutting performance, engineered for the most demanding applications in construction, roadwork, and rescue operations....


Product Detail

Product Tags

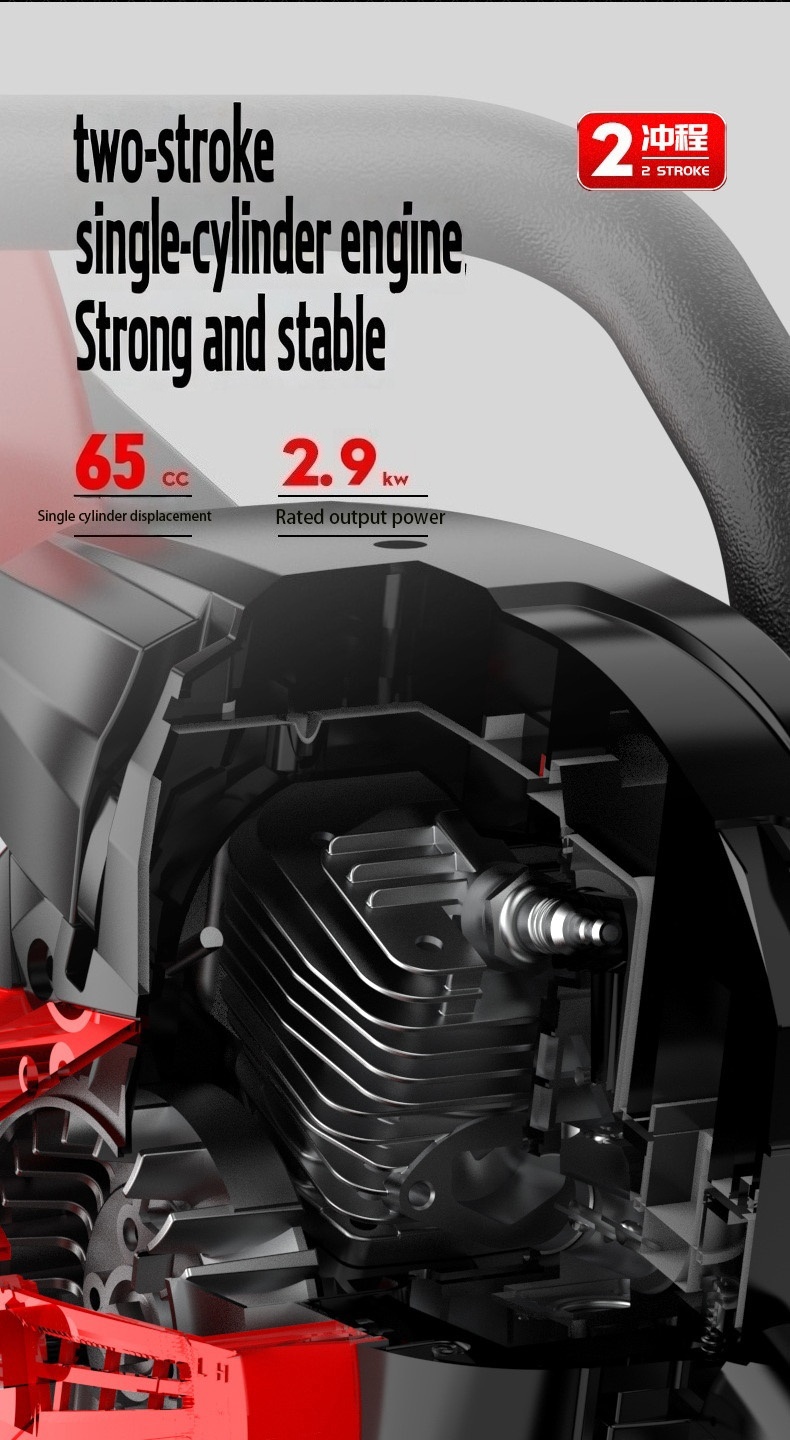

The QS-350 represents the pinnacle of heavy-duty cutting performance, engineered for the most demanding applications in construction, roadwork, and rescue operations. At the heart of this robust tool is a powerful 65cc, two-stroke, single-cylinder engine, delivering a significant 2.9 kW (3.8 HP)of rated power. This ensures exceptional torque and cutting speed, even under continuous load in concrete, asphalt, reinforced masonry, and stone.

A critical innovation is the Enhanced High-Efficiency Cooling and Ventilation System. The design incorporates widened heat dissipation holes and optimized internal airflow pathways, effectively managing thermal load. This advanced engineering prevents overheating, guaranteeing stable performance and engine durability during extended, intensive operation without involuntary shutdowns.

Operator safety and cutting precision are fundamental. The cutter features a rotating, fully sealed protective coverintegrated with mudguards to effectively contain debris and slurry. For unparalleled stability and control, an adjustable support leg bracket ensures accurate cutting depth. The tool is driven by a large 350mm (14-inch) diamond saw blade, enabling a deep 125mm (4.9-inch) cut, making it ideal for a wide range of deep-cut tasks.

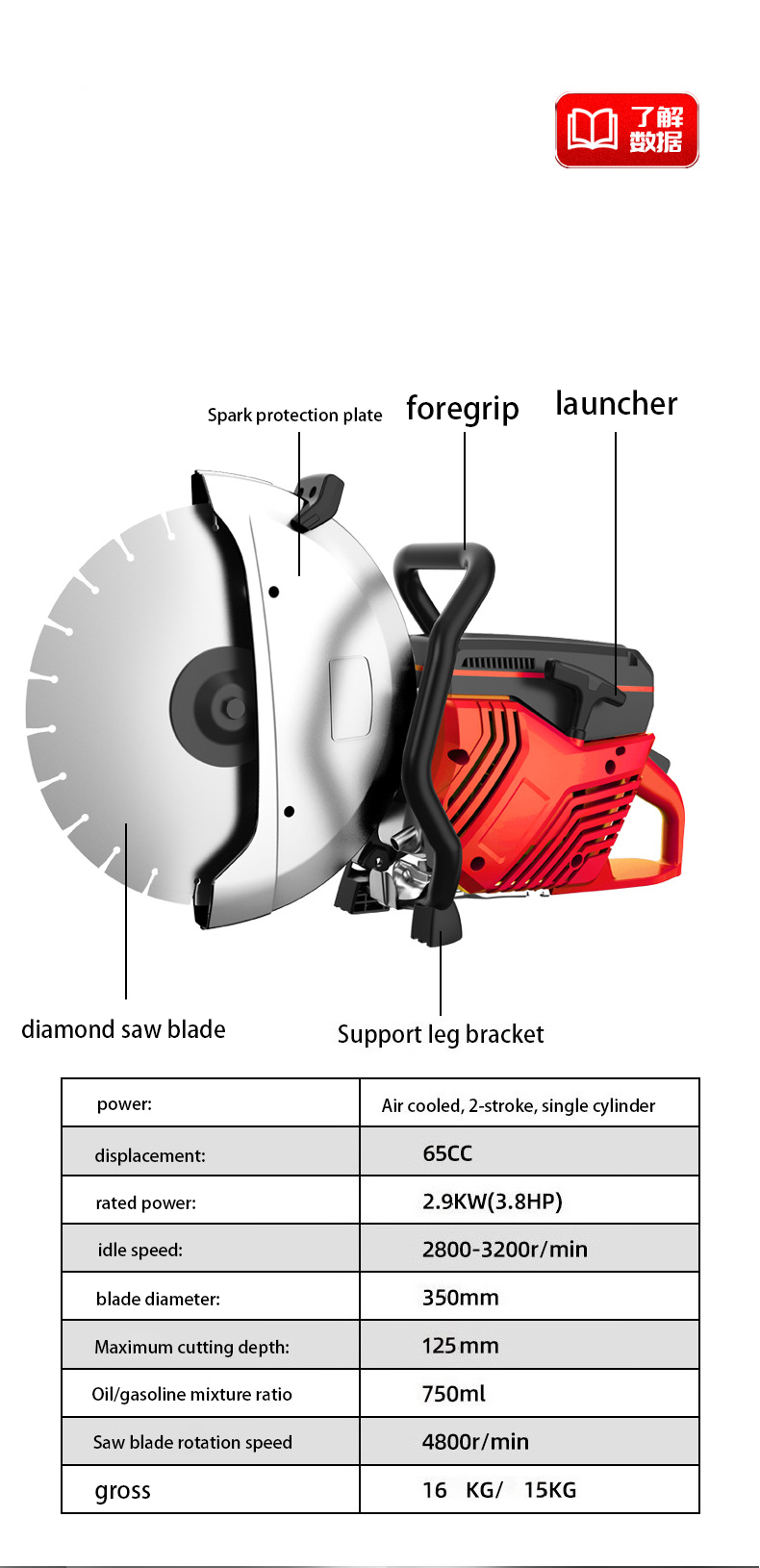

Product Specifications Table: Model QS-350


Category

Specification

Engine Type

Air-cooled, 2-Stroke, Single-Cylinder

Displacement

65 cc

Rated Power

2.9 kW (3.8 HP)

Idle Speed

2800 - 3200 rpm

Max. Saw Blade Speed

4800 r/min

Blade Specification

Diamond Saw Blade

Blade Diameter

350 mm (14")

Maximum Cutting Depth

125 mm (4.9")

Fuel/Oil Mixture Ratio

Petrol / 2-Stroke Oil

Fuel Tank Capacity

750 ml

Gross Weight

16 kg / 15 kg (as configured)

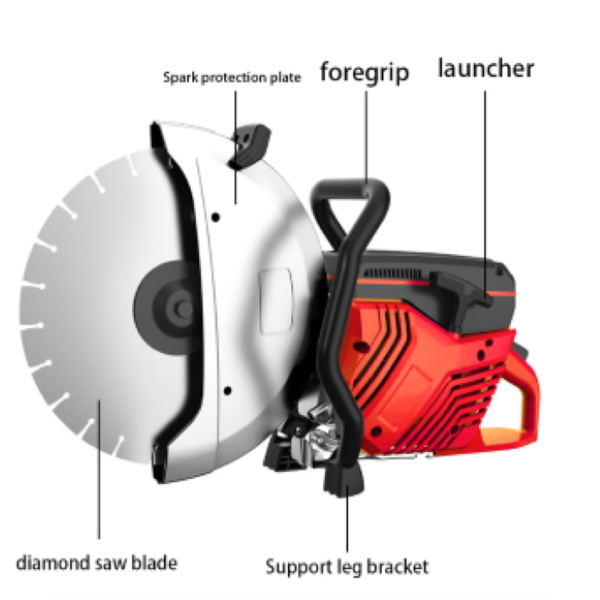

Key Features

• Enhanced High-Efficiency Cooling System
  • Rotating Fully Sealed Protective Cover with Mudguards
  • Spark Protection Plate
  • Adjustable Support Leg Bracket
  • Ergonomic Foregrip and Main Handle
