Diamond core drill bits are essential tools in many industries, offering unrivaled performance when drilling through tough, hard materials. From construction projects to geological surveys, these specialized drill bits are designed to make drilling operations quicker, more efficient, and more precise. In this article, we will explore everything you need to know about diamond core drill bits—from their construction and types to applications, benefits, and maintenance tips.

What Is a Diamond Core Drill Bit?

A diamond core drill bit is a type of drill bit used for cutting holes in hard materials. Unlike traditional twist drill bits that cut by rotating a solid bit into the material, diamond core drill bits are designed to remove a cylindrical core of material, leaving behind a clean, smooth hole. The bit is embedded with industrial-grade diamond segments that allow it to cut through even the toughest surfaces with ease. This design makes diamond core drill bits particularly effective for materials like concrete, granite, marble, and asphalt.

How Diamond Core Drill Bits Work

Diamond core drill bits work through a process called core drilling. Instead of fully drilling out a material, core drilling removes a core or sample of the material in a cylindrical shape. This allows for cleaner and more precise holes while minimizing the mess and debris typically associated with conventional drilling.

As the drill bit rotates, the diamond segments on the edge of the bit grind away at the material. The diamonds' incredible hardness helps them cut through dense materials efficiently, while the core is collected inside the bit itself. This process is especially useful for applications where a precise, smooth hole is required, such as installing plumbing pipes, ducts, or creating test samples from rock formations.

Types of Diamond Core Drill Bits

Diamond core drill bits come in various styles to suit different applications and materials. The main types include:

1. Wet Diamond Core Bits:

• Designed for use with water or other coolants, these bits are ideal for drilling into hard materials like concrete, stone, and marble.

• Water cools both the bit and the material, reducing dust, cooling the bit to prevent overheating, and providing a cleaner drilling process.

2. Dry Diamond Core Bits:

• These bits are intended for drilling without the use of water. They are ideal for dry applications, especially in softer materials like asphalt or bricks.

• Dry bits are often used in construction or renovation projects where water is not practical or desired.

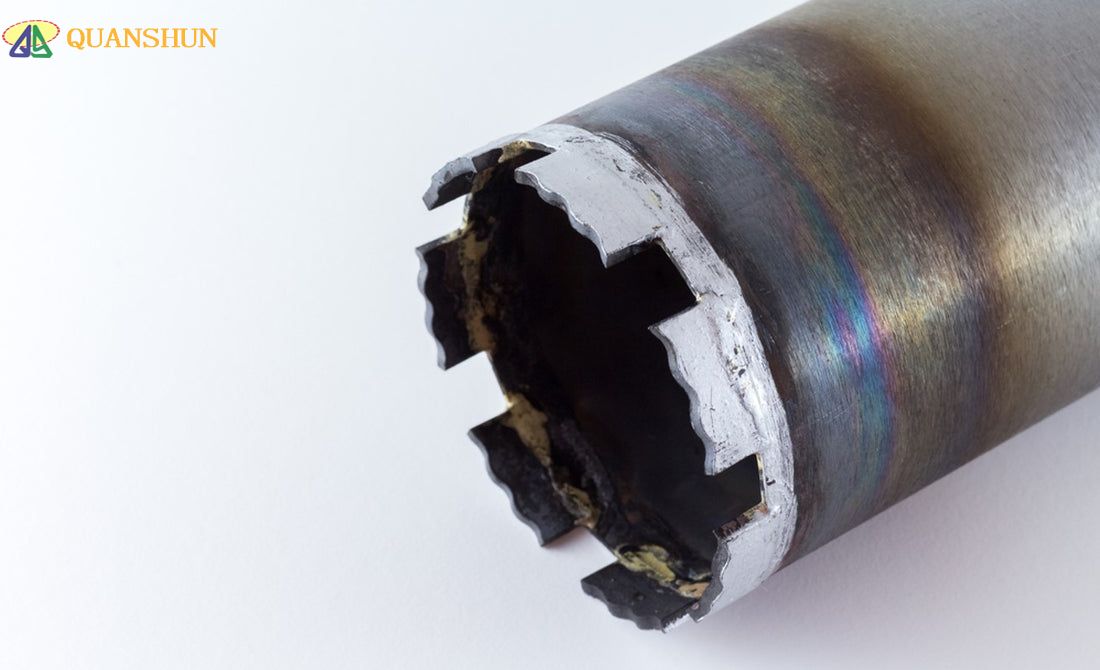

3. Segmented Diamond Core Bits:

• These bits feature individual segments of diamonds embedded into the cutting edge.

• Segmented bits are generally used for tougher, more abrasive materials like concrete and granite, offering durability and efficient performance.

4. Continuous Rim Diamond Core Bits:

• These bits have a continuous, smooth rim of diamond segments rather than individual segments.

• They are typically used for materials that require a high level of precision and a smooth edge, such as ceramics, marble, or tiles.

5. Turbo Diamond Core Bits:

• Turbo core bits have a "turbine" design with segments that offer quicker material removal and higher cutting speeds.

• These are often used for high-performance drilling in tough materials like concrete and stone.

Applications of Diamond Core Drill Bits

Diamond core drill bits are used across a wide range of industries and applications. Some of the most common include:

• Construction: Diamond core drill bits are widely used in construction for tasks such as creating holes in concrete for rebar, electrical conduits, and plumbing pipes. They are also used for drilling into walls, floors, and ceilings.

• Geological Exploration: These bits are essential for collecting core samples from rock formations in geological surveys. They help geologists obtain undisturbed samples that can be analyzed to study the composition of minerals and rocks.

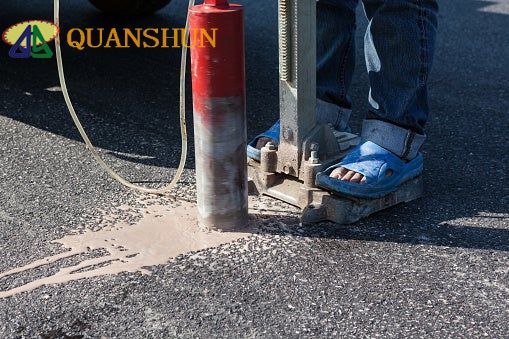

• Road Work & Asphalt Drilling: In roadwork, diamond core bits are used to drill through asphalt for utility installation, road repairs, or other infrastructure projects.

• Plumbing & HVAC: For drilling holes in walls, floors, and ceilings for pipes or air ducts, diamond core drill bits offer precision and minimize disruption to the surrounding material.

• Masonry & Tile Cutting: When installing tiles or drilling into stone or masonry, diamond core drill bits are often used to create clean, precise holes without cracking or chipping the material.

• Mining & Core Sampling: Diamond core bits are used in mining operations to extract core samples from deep underground, which helps in analyzing ore bodies, water tables, and geological conditions.

Advantages of Diamond Core Drill Bits

1. Superior Cutting Power: The diamond segments provide unparalleled hardness and cutting power, allowing these bits to drill through even the toughest materials without significant wear.

2. Durability: Diamond core drill bits last much longer than traditional carbide or steel bits. Their ability to withstand high heat and friction ensures they can handle tough jobs over extended periods.

3. Clean, Precise Holes: The core drilling process produces clean, cylindrical holes with minimal debris and no need for additional smoothing or cleanup. This is crucial for applications where precision is necessary.

4. Versatility: Diamond core drill bits can be used on a wide range of materials, including concrete, asphalt, stone, granite, ceramics, and more. This makes them useful across many industries, including construction, mining, and geological exploration.

5. Faster Drilling Speed: Due to their design and the power of diamonds, core drill bits can drill faster and more efficiently than other types of drill bits, saving both time and effort.

Maintenance and Care for Diamond Core Drill Bits

Proper maintenance ensures that your diamond core drill bits perform at their best and last longer. Here are some tips for maintaining these high-performance tools:

• Use Cooling Systems: Always ensure that you use a cooling system (water or air) when using wet or dry diamond core drill bits to prevent overheating and ensure smooth drilling.

• Avoid Overheating: Overheating can cause the diamonds to lose their sharpness or break off. If you notice the bit is getting too hot, take breaks to let it cool down or adjust the speed of drilling.

• Keep It Clean: After use, clean the core drill bit thoroughly to remove any debris or material that may have built up. This prevents the buildup from affecting the bit's cutting ability on future jobs.

• Proper Storage: Store diamond core drill bits in a dry, cool place when not in use to prevent corrosion or damage. Avoid dropping or striking them, as the diamond segments can crack or loosen.

Conclusion

Diamond core drill bits are indispensable tools for a variety of industries due to their ability to cut through hard materials with speed, precision, and durability. Their versatility makes them ideal for everything from construction and plumbing to geological exploration and mining. By understanding the types, applications, and proper care of diamond core drill bits, users can maximize their investment and ensure long-lasting performance, making tough jobs easier and more efficient.

Whether you're working on a commercial construction site, performing core sampling for mineral exploration, or drilling through stone for a home renovation, diamond core drill bits will provide the reliability and precision you need for high-quality results.
